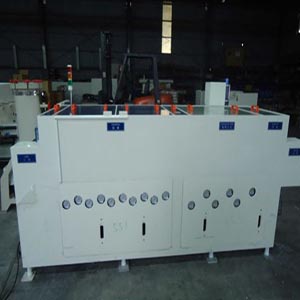

Etching
Etching
Product Number：AGCE
Device Summary:
- Production speed: 0.1 ~ 3m / min
- Board Dimensions: 100 mm X 100 mm ~ 550 mm X 650 mm
- Handleable thickness: 0.3~2mm
- Contain Drip Tray ,Etching Tank Heating and Cooling Thermostat

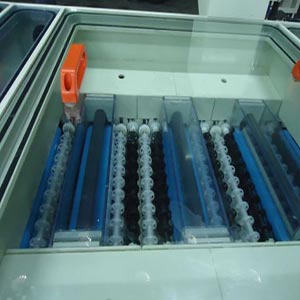

- Chemical tank water jet erosion
- Chemical Tank Set Heating and Cooling Temperature Control System
- Chemical tank attached two grooves, Replacing tank can be switched, basically to calculate the number of pieces to determine the switching time
- Using three overflow water
- # 2 The controller is equipped with conductivity detection Water
- Buzzer install variable resistor to adjust the volume
- The bottom of the machine attached drip tray

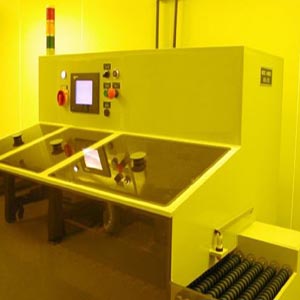

- 50 sets of production parameters with memory, operator selectable parameters sets, engineers can enter the password to change the parameter settings
- Includes water-saving features
Applications /Applicable size:
- Semiconductor / MEMS / LED / Passive Component: 2 "~ 12"
- Touch Panel / Display Panel: 550mm ~ 650mm
